Perform a full backup of the Huawei USG6510F-D :

Perform a full backup of the Huawei USG6510F-D Print

Created by: Carlos Lima

Modified on: Mon, 28 Jul, 2025 at 12:16 PM

In order to backup all necessary files, in an event a hardware replacement is needed, you can follow the procedure below.

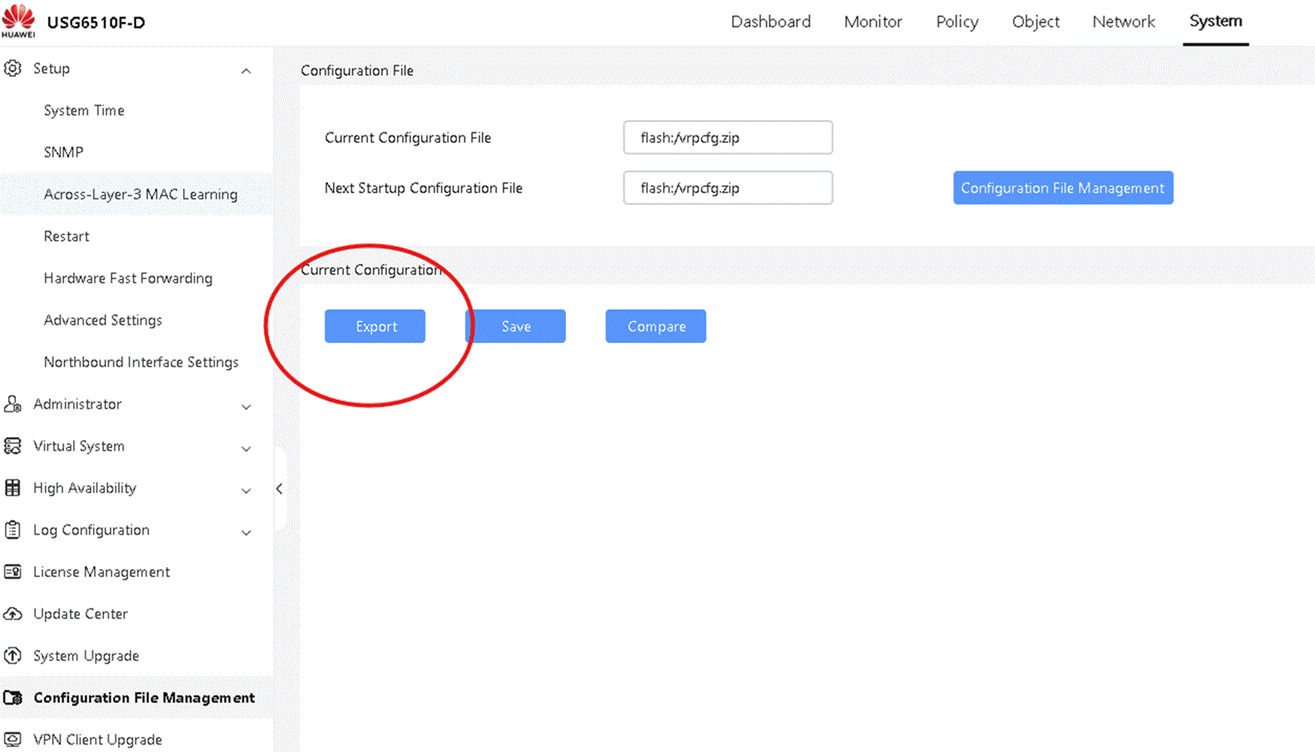

You can export the vrpcfg.zip file from web GUI following the procedure you already performed.

cid:image003.png@01DBFCA6.A3792D80

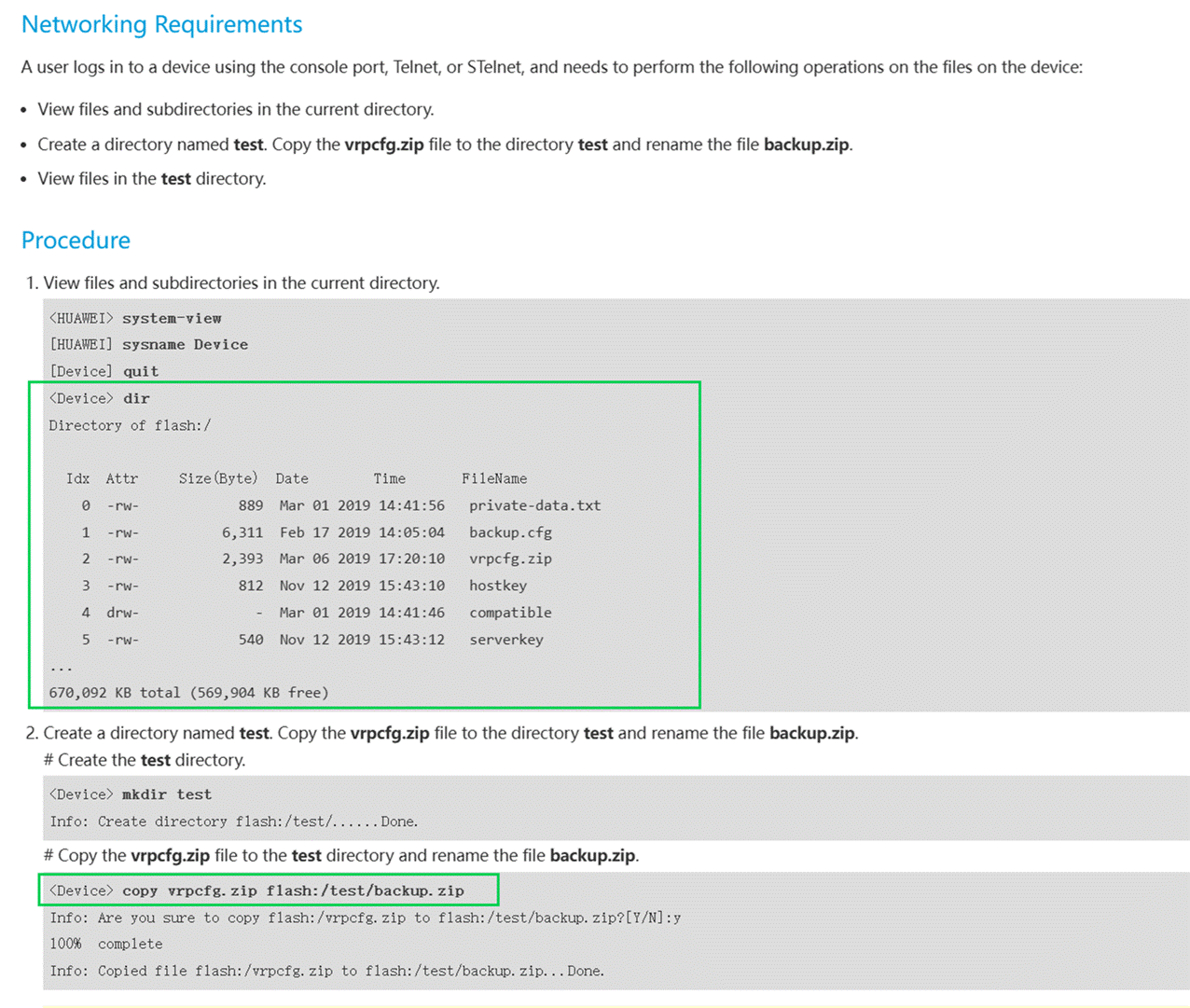

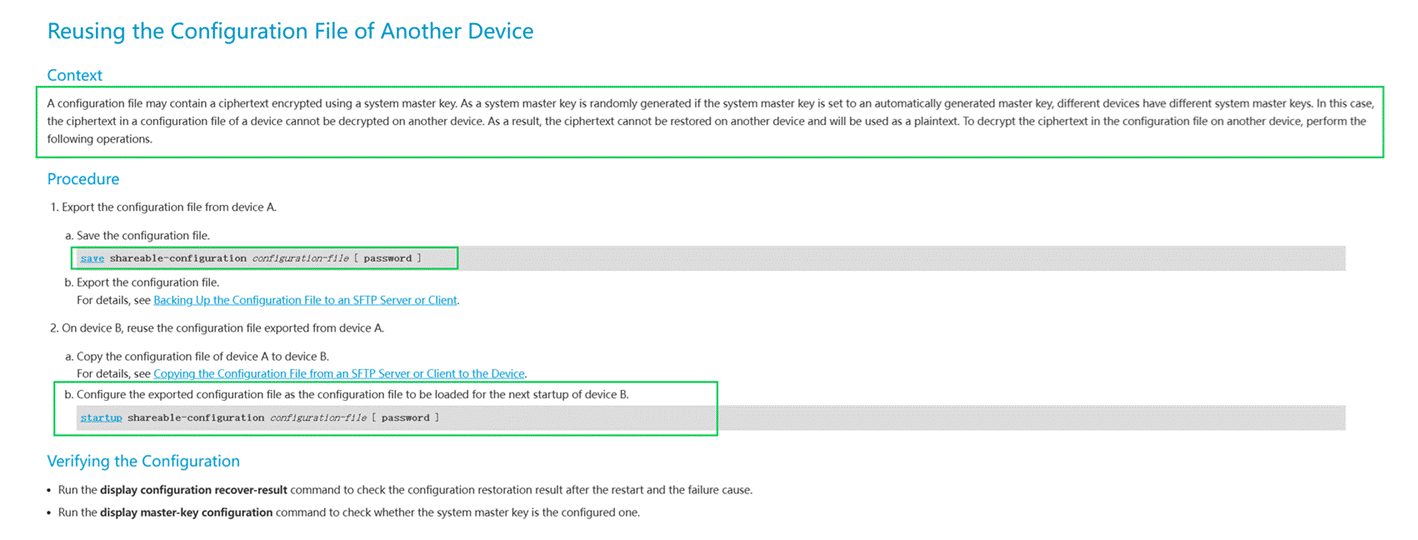

In order to reuse the configuration file to another device using the CLI, you can use the procedure at the link below as well.

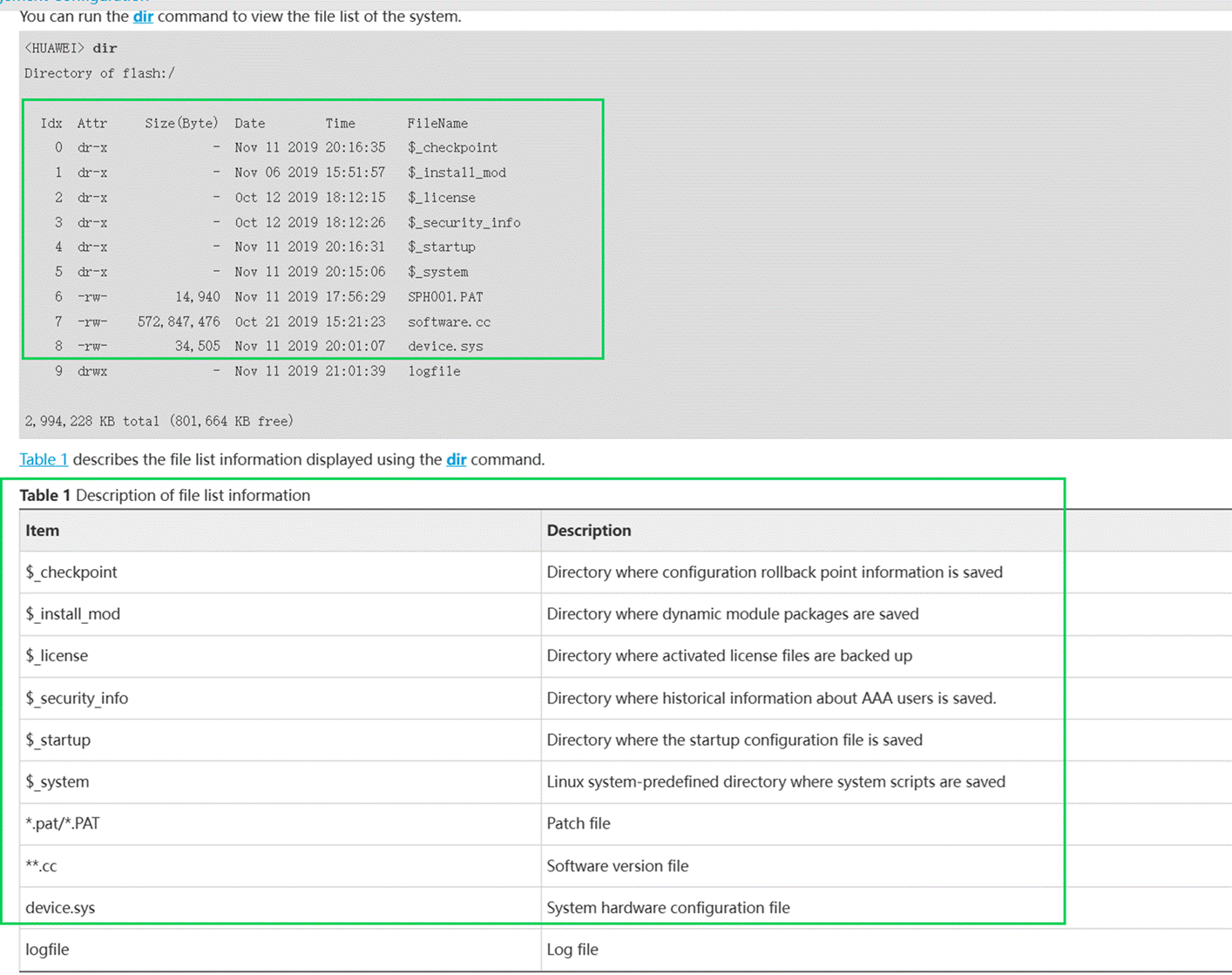

Please also note that the license files, module files, software version, patch files need to be backed in the event the hardware replacement is needed.

Then backup the files.

Also, the ESN of the license file needs to be changed to the ESN of the new firewall.

In the event a replacement is needed, you can reach us further to perform the operation in the ESDP platform.

Carlos is the author of this solution article.
